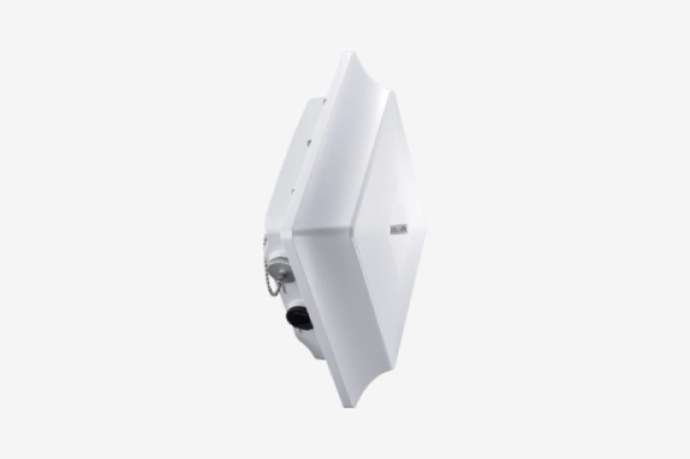

BiPAC 5700
5G NR VPN 戶外型 路由器
BiPAC 5700 整合最新的 5G NR(Sub-6G)移動通訊模組和高性能雙極化 MIMO 天線，是一款高效能的商用戶外路由器。BiPAC 5700 擁有高效能，強大連接能力，能長時間保持穩定運行，為市區、住宅區和郊區的最後一哩固定式無線接取提供理想的解決方案。
特點及優勢
-
高效能，強大連接能力
-
固定無線寬頻
-
最後一哩固定式無線接取
-
專為嚴苛環境設計
-
郊外、農村、大型戶外活動等欠缺網路服務或需要無線行動網路服務等地區
高效能
- 新一代5G NR(sub-6G)移動通訊模組 *1
- 具備各項進階網路功能，可提供路由模式及IP Pass-Through模式
優化的雙極化MIMO天線
- 滿足大頻寬與遠距離通訊需求
虛擬私人網路 (VPN)
- IPSec, OpenVPN, GRE, PPTP, L2TP
中央監控管理系統
- CWMP(TR-069)
- Billion CMS
專為嚴苛環境設計
- 採用工業級元件搭配IP67等級外殼防水防塵外殼保護
- 靈巧強固的安裝套件設計不受架設環境限制
- 抗突波和靜電防護設計可有效預防雷擊或靜電突波
靈巧簡潔的設計
- 支援乙太網路供電(PoE)(Power over Ethernet)
- 單人即可輕鬆安裝
產品包裝含 PoE 供電器及安裝套件
規格
5G NR (sub-6G)移動通訊
- Embedded high performance 5G NR(sub-6G) module*1
- Embedded dual-polarized MIMO antenna
內建5G NR(sub-6G)模組
- Frequency bands and data rare depend on equipped 5G NR(sub-6G) module*1
網路協議與功能
-
IPv4, IPv6, IPv4/ IPv6 dual stack*2
- Dual APN*3
- Keep Alive
- IP Pass-Through
- NAT, Virtual Server and DMZ
- Static Routing, Dynamic Routing (RIP-1/2, OSPF, BGP)
- SNTP, DNS relay and DDNS
- Universal Plug & Play (UPnP)
-
Supports DHCP server/ client
防火牆
-
Built-in NAT firewall
-
Stateful Packet Inspection (SPI)
-
Prevents DoS attacks including Land Attack, Ping of Death, etc.
-
Access Control
-
IP Filtering, MAC Filtering, URL Filtering
- VPN pass-through
虛擬私人網路 (VPN)
- IPSec
- PPTP
- L2TP
- GRE
- OpenVPN
全球導航衛星系統 (GNSS) *2
- Embedded multi-GNSS engine for GPS or GLONASS system
設備管理系統
- Password protection for system management
- Web-based GUI for remote and local management
- Firmware upgrade and configuration data upload and download via Web GUI
- TR-069(CWMP)*2, Billion CMS*2, SNMP
- 5G NR Usage Allowance
- Syslog monitoring
- Physical layer/protocol diagnostic test tool
硬體規格
實體介面
- One(1) Gigabit Ethernet Interfaces with passive PoE PD
- One(1) Mini-SIM(2FF) slot (for the SIM from Telco/ISP)
- Reset Button
- LED Indicators: Power/Boot, LAN(PoE), Internet, Signal Strength, and GNSS *2
產品規格
- Dimensions: 257mm x 227 mm x 91mm (8.5" x 7.5" x 3.0")
- Weight: 1.81kg (4lbs)
- IP-67 grade enclosure
工作環境溫度
- Operating: -40°C to 60°C (-40°F to 140°F)
抗突波與靜電保護
- Surge Protection: K.21 common mode ±6KV
- ESD Protection: Contact: ±8KV / Air: ±15KV

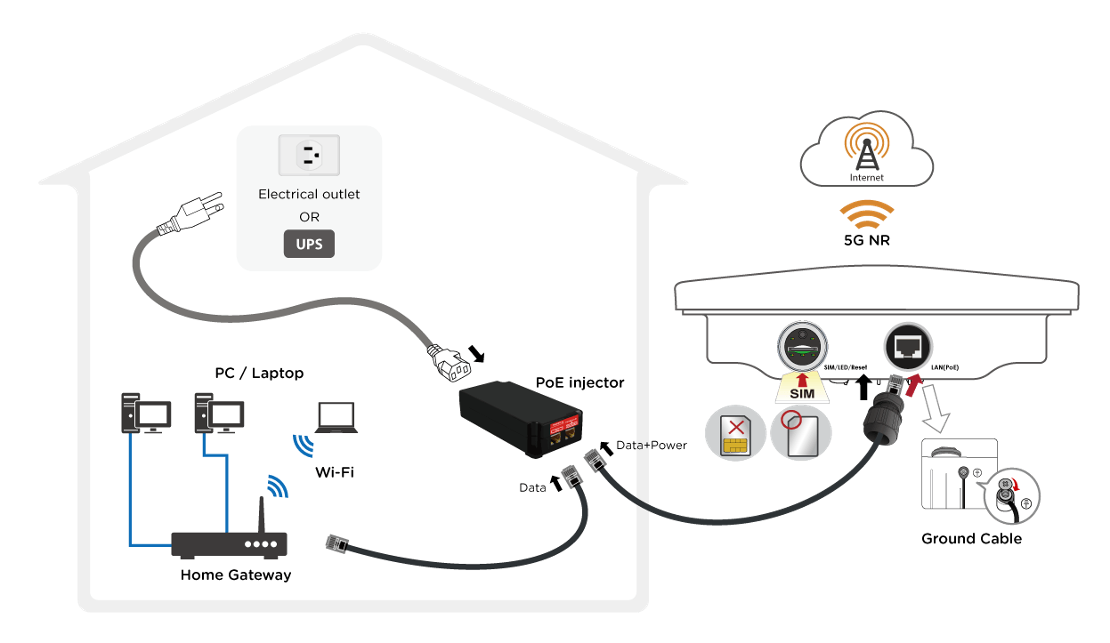

應用圖
規格表
| WAN Interface | |
|---|---|
|
5G NR
|
|
|
Ethernet WAN
|
|
|
Hardware Interface
|
|
|---|---|
|
SIM slot
|
● (x1)
|
|
Gigabit Ethernet
|
● (x1)
|
|
802.11n (2.4 GHz)
|
|
|
802.11ac (5 GHz)
|
|
|
PoE-PD
|
● 乙太網路供電(PoE) |
|
Features
|
|
|---|---|
|
IPv4 / IPv6
|
|
|
Dual APNs
|
● (*2)
|
|
Dual WAN (Failover/Failback)
|
|
|
Dual WAN (Load Balance)
|
|
|
Interface Grouping
|
|
|
VPN
|
|
|
Hotspot
|
|
|
IP67
|
|
|
Hardware Specifications
|
|
|---|---|
|
Physical Specifications
|
257mm x 227 mm x 91mm (8.5" x 7.5" x 3.0")
|
|
Power Requirements
|
PoE
|
|
Operating Environment
|
-40°C to 60°C (-40°F to 140°F)
|
