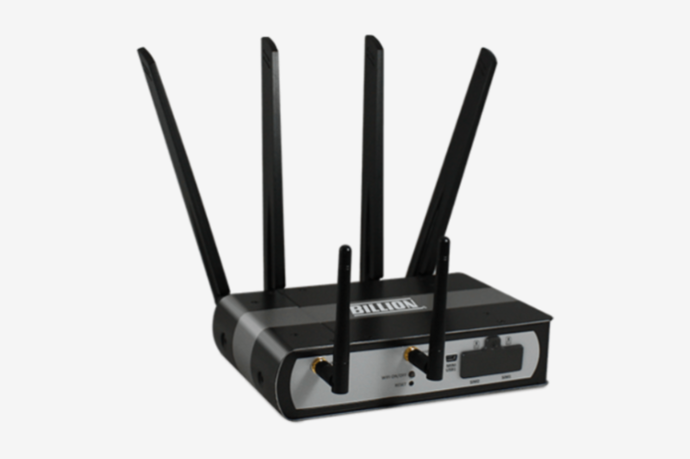

Billion M500

(0 review)

Billion M500 LTE 雙卡雙待 無線熱點 工控/車載 E-Mark (R10、R118) 路由器是一款高性能的一體化固定無線通訊設備，採用先進的軟件，可實現高可用性、可靠、安全的無線連接，適用於關鍵任務應用。其緊湊堅固耐用的設計集成了雙SIM雙射頻、4端口千兆交換機、Wi-Fi接入點、嵌入式GPS與GPS或GLONASS引擎的並發多GNSS引擎以及車載應用的點火電源控制。 M500是專門為支持廣泛的應用和垂直機對機(M2M)細分市場而設計。

NT$ 1.00 1.0 TWD NT$ 1.00

NT$ 1.00

    此組合不存在。

    條款和條件
    30天退款保證
    運送：2-3 個工作日

    特點及優勢

    專為挑戰性/堅固的部署而設計
    Billion M500的金屬機殼，在穩固性的要求下提供最大彈性的拆換組裝可能性，並且通過MIL-STD-810G 514.6, 516.6 美國軍方標準測試。Billion M500的主動監控設備溫度機制能擴大系統可工作溫度(-40°~60°C)，M500也提供適應大範圍工作電壓(DC 10V~56V)的電路設計，足以滿足各種嚴苛的操作環境需求。

    彈性的網路連線
    Billion M500的雙LTE模組的架構設計可依照不同方案需求提供「頻寬擴展性-負載平衡」或「可靠性連結-自動故障轉移與回復」，實時提供穩定可靠的連線品質。Billion M500同時內建GNSS功能，中控中心可據此追蹤遠端系統座標進而定位。

    高性能、可靠性、易於管理
    搭配Billion CMS更可於中控中心內即時監控M500系統本身運行狀況。Billion M500整體設計的優勢足以滿足彈性、靈活、可靠與穩定的嚴格要求，此外提供多種VPN連線通道保障通訊資料安全性，以及內建衛星導航系統（GNSS）可追蹤遠端系統定位，讓Billion M500足以勝任遠端監控系統的通訊任務，確保資料即時無誤的傳達至中央控制中心。


    High-performance and reliability - easy to manage and access

    • Offers LTE broadband connectivity (3G Fallback is optional)
    • Multi-WAN interfaces: Dual SIMs/ Dual Modules and EWAN for network resilience and reliable connectivity
    • Supports two SIM cards, and each SIM card is associated with one of the two LTE radios/modules
    • Network expandability - load balance and reliable connectivity - auto-failover/failback
    • Embedded GNSS option for real-time asset tracking and location data-based applications
    • Local and Remote management via Web GUI, SNMP or CWMP(TR-069)

    Compact and unobtrusive design

    • Small form factor with multiple mounting options, easily installed by a single person
    • Ignition power control option when mounted within vehicles

    Secure VPN Connections

    • Embedded IPSec, PPTP, L2TP, GRE and OpenVPN secure VPN connection with powerful encryption

    Designed for challenging / rugged deployments

    • Hardened enclosure with Industrial-graded components
    • Designed to withstand heat, humidity and protect from shock, vibration, etc
    • E-Mark (E1) certified

    Ideal Solution for

    • Business Continuity, Logistics/Transportation and Fleet, Public Safety applications

    規格

    Availability and Resilience

    • Dual SIMs/ Dual Modules
    • Dual-WAN Interfaces (LTE, GbE WAN)

    Embedded 4G/LTE *1

    • Embedded high performance 4G/LTE module

    • Primary WAN LTE: FDD and TDD (Bands

      depend on module configuration)

    •  Secondary WAN LTE: Optional (Bands depend on module configuration)

    Network Protocols and Features

    • Dual WAN Failover/ Failback
    • Dual WAN Load Balancing
    • IPv4, IPv6, IPv4/IPv6 dual stack*2
    • Dual APN*2
    • Keep Alive
    • IP Pass-Through
    • NAT, Virtual Server and DMZ
    • Static Routing, Dynamic Routing (RIP v1/v2,OSPF, BGP)
    • SNTP, DNS relay and DDNS
    • Universal Plug and Play (UPnP) compliant
    • Supports DHCP server/client/relay

    Firewall

    • Built-in NAT Firewall
    • Stateful Packet Inspection (SPI)

    • Prevents DoS attacks including Land Attack,Ping of Death, etc.

    •   Access Control
    • IP Filtering, MAC Filtering, URL Filtering
    • VPN Pass-through

    Virtual Private Network (VPN)

    • IPSec

    • PPTP
    • L2TP
    • GRE
    • OpenVPN

    Wireless LAN

    • Compliant with IEEE 802.11n standard
    • Up to 300Mbps wireless operation rate
    • WPS (Wi-Fi Protected Setup) for easy setup
    • 64/128 bits WEP supported for encryption

    • Wireless security with WPA-PSK, WPA2-PSK,Mixed WPA/WAP2-PSK

    • AP and WDS Operational Modes
    • Multiple SSID (4 SSIDs), BSSID
    • Wireless MAC Filtering
    • Wi-Fi Client Isolation
    • Wi-Fi Hotspot with Captive Portal
    • Support RADIUS authentication
    • Wi-Fi client rate-limiting

    Global Navigation Satellite System(GNSS)*3

    • Embedded multi-GNSS engine for GPS or

      GLONASS system

    USB Application Server

    • Storage: FTP server and Samba server

    Management

    • Password protection for system management

    •  Web-based GUI for remote and local

      management

    • Firmware upgrade and configuration data

      upload and download via web-based GUI

    •  CWMP(TR-069)*2, SNMP
    • 3G/ 4G LTE Usage Allowance
    • Remote System Log monitoring
    • Scheduling Auto-Reboot
    • Physical layer/protocol diagnostic test tool

    Physical layer/protocol diagnostic test tool

    • WAN: 4G/LTE

      Optional :

      Single Module/SIM

      Dual Modules/SIMs

    •  Ethernet LAN: four(4) port 10/100/1000Mbps

      auto-crossover (MDI/ MDI-X) switch

    • USB 2.0 Host: two(2) ports
    • Mini USB Console: two(2) ports
    • Reset Button
    • Wireless On/Off and WPS Push Button

    • Power Connector: 4-pin connector with

      ignition sensing

    • LED Indicators
    • Antenna:
    • 4G/LTE:

      four(4) detachable antennas(dual modules)

      two(2) detachable antennas(single module)

    • GPS: one(1) detachable active antenna

      (option)

    • Wireless: two(2) detachable antennas

    Power Specifications

    • Input: DC 10V~56V

    Physical Specifications

    • Dimensions: 7.25"(W) x 1.91"(H) x 5.31"(D)

      (184.25 mm x 48.5 mm x 135 mm)

    • Weight: 1.07kg (2.36lbs)

      Operating Requirements

    • Operating: -40°C to 60°C (-40°F to 140°F)
    • Humidity: 20 ~ 95% non-condensing

    應用圖
